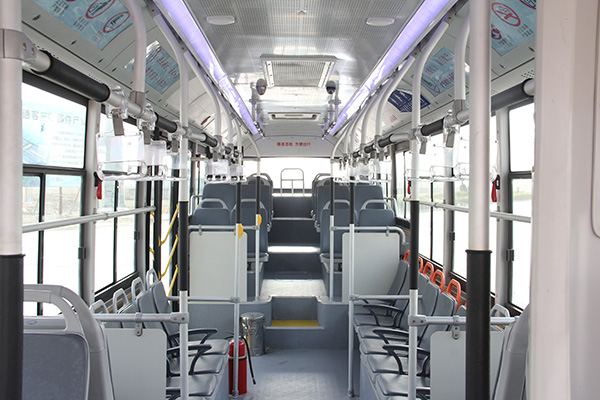

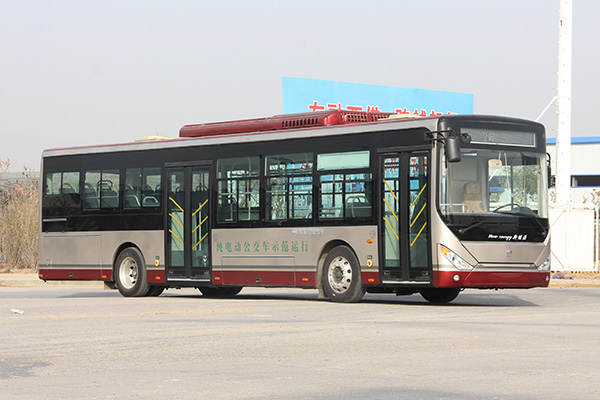

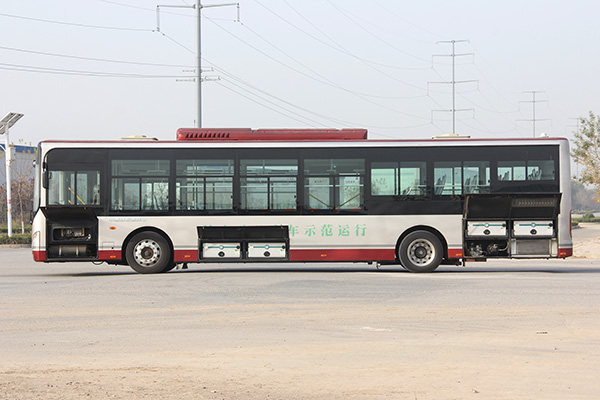

The LCK6122EVG coach is 12 meters long and provides full-load capacity, extremely suitable for use in medium-scale and large-scale urban public transportation systems. The coach has a clean appearance and nice interior design. Not only that, by applying sophisticated manufacture techniques and high-quality components, the motor coach also possesses excellent dynamic properties, high reliability, high safety, low energy consumption and stable performance. Reliable vehicle parts and configurations include professional chassis, Lithium ion battery pack, continuously variable transmission gearbox, rear-mount motor, rear wheel drive system, A.C. system, electric steering system, air compression system, controller and electric control components.

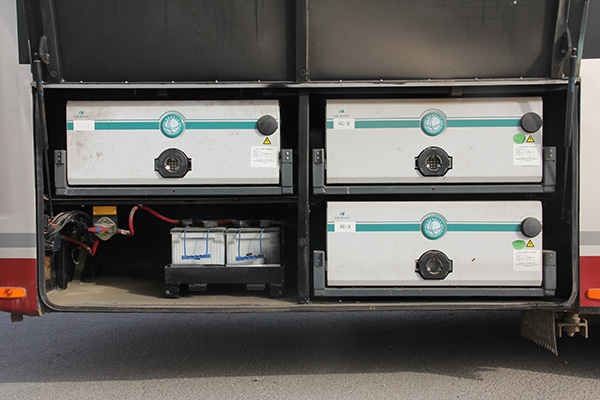

Bus parameter | total length (mm) | 11990 | Power train system | Battery model | Lithium iron phosphate |
total width (mm) | 2540 | Total capacity | 230.4 | ||
total height (mm) | 3280,3150 | Cooling method | Air cooling | ||
wheelbase (mm) | 6100 | Drive system | WTEM80-40-2 | ||
front/rear suspension (mm) | 2640/3250 | ||||
inner height (mm) | 2450 | Drive method | Four-gear motor AMT | ||
approach angle/departure angle (º) | 7.0/7.0 | Voltage of controller (V) | 540 (DC) | ||
height of single step (mm) | ≤360 | Rated /Max. power (kw) | 80/160 | ||
max total mass defined by factory (kg) | 18000 | Rated /Max. torque (N.m) | 477/1000 | ||
max speed (km/h) | 69 | Cooling method | Water cooling | ||
rated capacity (person) | 70/10-42 | ||||
Item | Configurations | Option | |||
Chassis parameter | Manufacturer | Zhongtong Bus Holding Co., Ltd. | |||
Front axle | 7T, disc brake | ||||
Rear axle | 13T, drum brake | ||||
Suspension | Air suspension 2/4 | ||||
Steering | Integral power steering | ||||
Brake | Electric air pumper; dual-circuit air brake; front disc and rear drum brake; air drier; ABS; and rear automatic adjustment arm | ||||
Tire | 275/70R22.5×6 | ||||
Batteries | Storage battery, 120A.h×2 | ||||
Others | Fans for motor cooling | ||||
Seat | Zhongtong 8061 coach seats,Zhongtong 1021 adjustable driver seat |
