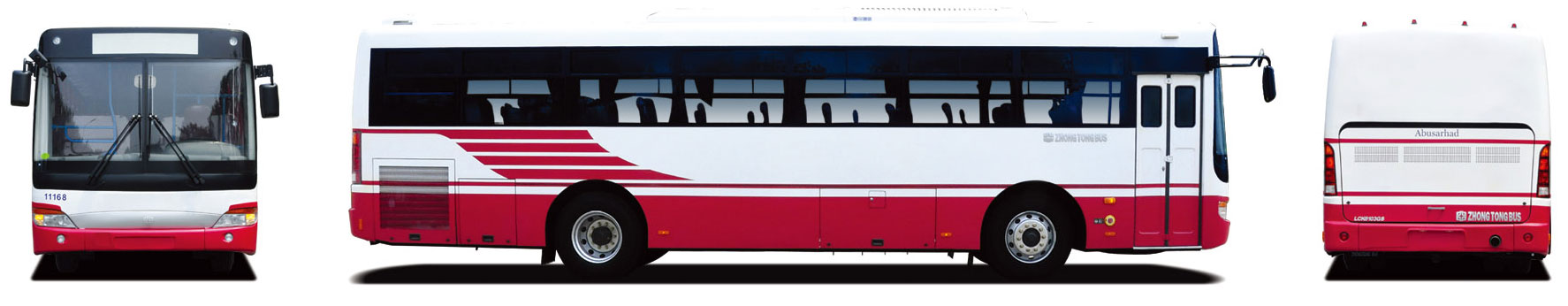

6820GH series group bus is particularly used for intercity bus. With more than 10 years' improvement and modification, it is won trust from the majority of our customers. The group bus is equipped with luggage compartment. Its 3+3/2+2 seat layout contributes to optimal space utilization. In 2012, we sold 2082 sets of 8-9m group bus to Saudi Arabia. Till now the cumulative sales of 6820GH bus in Saudi Arabia reaches 5000 sets.
Bus parameters | total length (mm) | 8220 | Engine | model | YC4G180-20/YC4G180-30 | |
total width (mm) | 2360 | manufacturer | Yuchai | |||
total height (mm) | 3000/3160 | position/fuel | rear | |||
inner height (mm) | 1920 | type | straight 4-cylinder; straight | |||
wheelbase (mm) | 3800 | max power (kw) | 132/132 | |||
front/rear suspension (mm) | 1960/2460 | max torque (N.M) | 660/660 | |||
approach angle/departure angle (º) | 10/8 | displacement (ml) | 5202/5202 | |||
height of single step (mm) | 10500 | |||||
max total mass defined by factory (kg) | 46+1 | |||||
rated capacity (person) | 100 | |||||
Item | Standard configuration | Optional configuration | ||||
Chassis parameters | chassis | LCK6770RG | ||||
gearbox | CA6-75 | |||||
clutch | 395 single plate, dry, diaphragm spring | |||||
front /rear axle | 4.2T/8T | |||||
suspension | 9/11 multi-leaf spring | |||||
steering | Feining power steering system from | |||||
brake | double circuit brake system | |||||
fuel tank | 200L | |||||
tire | 7.5R20 Double Coin | |||||
accumulator/alternator | 24V120Ah/28V/150A from Prestolite | |||||
seat | 3+2 layout | 2+2, 31+1 |
