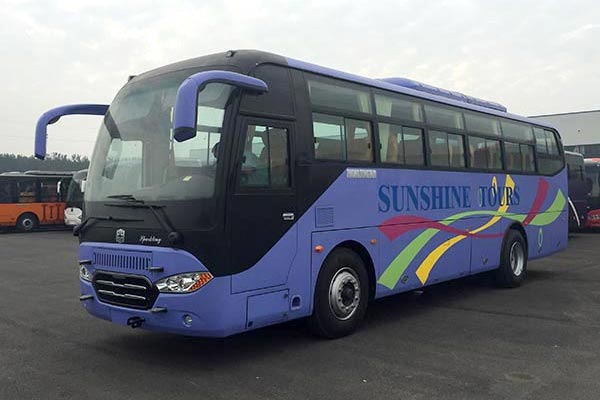

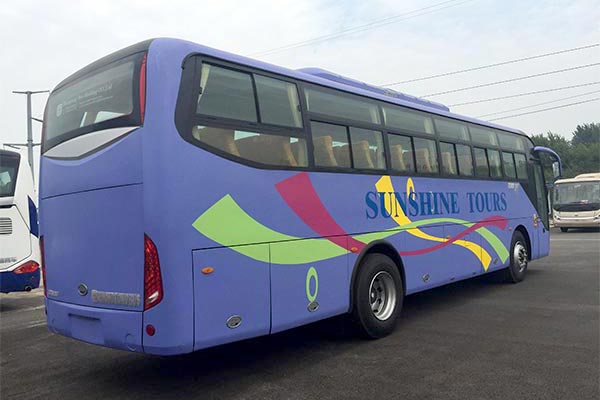

LCK6108T Coach
| Overall specification | Overall length (mm) | 10400 | Engine | Engine model | YC6J230-20 | |
| Overall width (mm) | 2480 | Manufacturer | Chinese Yuchai | |||
| Overall height (mm) | 3400 | Engine position | Front | |||
| Body inside height (mm) | 1945 | Engine Type | 6 cylinders in line, turbocharged, water cooling, inter-cooling | |||
| Wheel base (mm) | 5000 | Max power(kw/rpm) | 170 | |||
| Front/rear overhang (mm) | 2200/3200 | Max torque(N.m/rpm) | 810 | |||
| Approach/departure (º) | 11/9 | displacement(L) | 6.5 | |||
| First step height (mm) | 420 | Bore/stroke mm | 105X125 | |||
| Max G.V.W.kg | 13500 | fuel | Diesel | |||
| Seats capacity (person) | 44+1 | Emission standard | Euro II | |||
| Max. speed km/h | 100 | Steering wheel position | LHD | |||
| Luggage capacity (m3) | 6.3 | |||||
| Items | Standard Equipments | |||||
| Chassis Data | Manufacturer | Made in China | ||||
| Chassis model | Made in China | |||||
| Gear box | Manual 6 speed S6-80 | |||||
| Front axle | front axle,5.5 Ton | |||||
| Rear axle | rear axle, 9Ton | |||||
| Suspension | leaf spring 10/12 | |||||
| Steering | Integral power steering | |||||
| Brake | Dual circuit air braking, drum brake | |||||
| Fuel tank | 380 L | |||||
| Tyre | 11R22.5 Double Coin | |||||
| Battery /dynamo | 6-QA-165/110A | |||||
| Others | Air dryer, clutch booster, brake exhaust, ABS | |||||
| Bus specification | Body construction | Semi-integral, | ||||

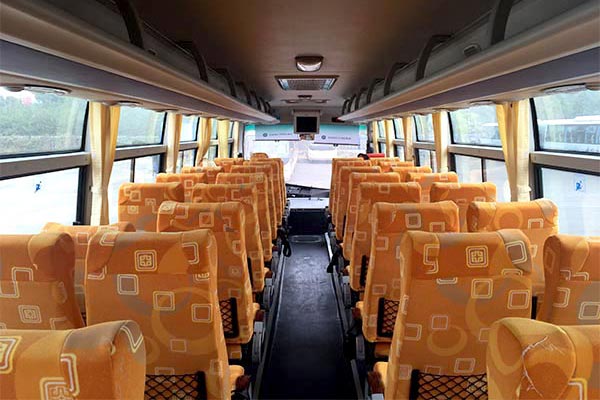

| Interior trim | Formed soft interior trim, air distributors and reading lights in the luggage rack | |||||
| Door & door pump | Front aluminum door, outside swing, domestic door pump | |||||
| Window, windscreen | Front rubber-laminated windscreen, | |||||
| rear window toughened safety glass | ||||||
| sliding side window | ||||||
| Rear mirror system | Manual motion | |||||
| A/C system | 26000Kcal/h +Driving fan | |||||
| Heating system | Front windscreen defroster | |||||
| Video system | 250G MP5+ one 17''LCD in front | |||||
| Lamps | New type combination lamp front and rear, rear brake light | |||||
| Wiper | Electric wiper | |||||
| Luggage door | Steel panel overturning opening door | |||||
| Seat | 2+2 layout, ZTZY3192,adjusting type, | |||||
| Paint | High quality paint | |||||
| others | skid proof floor leather, electric clock, windscreen sun visor, side window curtain, fire extinguisher, Stainless steel decoration cover, bull bar | |||||
