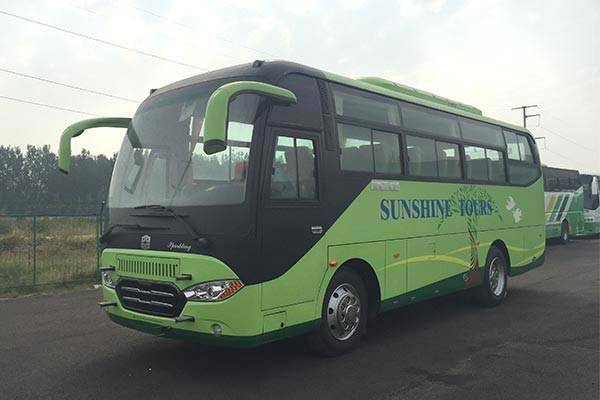

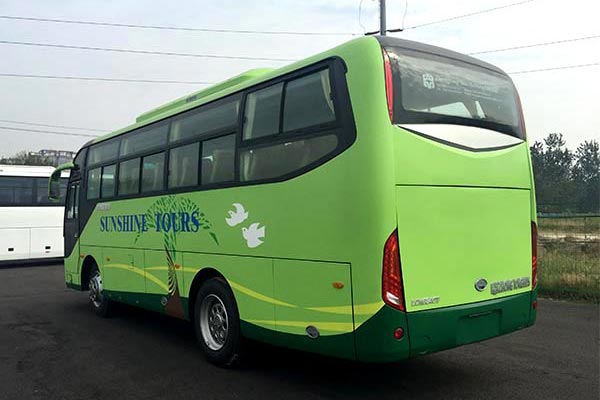

LCK6840T Coach
| Overall specification | Overall dimension (mm) | 8420 | Engine | Engine model | EQB180-20 |
| Overall width (mm) | 2420 | manufacturer | Cummins | ||
| Overall height (mm) | 3290 | Engine position | Front | ||
| Body inside height (mm) | 1920 | Type | 4 cylinder in line, water cooling turbocharged, inter-cooling | ||
| Wheel base (mm) | 4000 | Max power(kw/rpm) | 118 | ||
| Front/rear overhang (mm) | 1830/2590 | Max torque(N.m/rpm) | 520 | ||
| Approach/departure (º) | 12/9 | displacement(L) | 4.2 | ||
| First step height (mm) | 420 | Bore/stroke mm | 110X112 | ||
| Max G.V.W.kg | 9810 | fuel | Diesel | ||
| Seats capacity (person) | 34+1 | Emission standard | Euro II | ||
| Max. speed km/h | 100 | Steering wheel position | LHD | ||
| Luggage cabin m3 | 4.8 | ||||
| Items | Standard Equipments | ||||
| Chassis Data | Manufacturer | Made in China | |||
| Gear box | manual 6+1 speed | ||||
| Clutch | Single plate, dry type, ∮350 | ||||
| Front axle | 4.2 ton | ||||
| Rear axle | 7 ton | ||||
| Suspension | Leaf spring suspension, front 12/rear12 | ||||
| Steering | Integral power steering | ||||
| Brake | Dual-circuit air braking, drum brake | ||||
| Fuel tank | 200L | ||||
| Tyre | 8.25-20 | ||||
| Battery /dynamo | 6-QA-120 / 100A | ||||
| Others | Air dryer, Clutch booster, air power-assisted parking brake | ||||
| Bus Specification | Body construction | Semi-integral, weather-proof steel frame, Sparkling model | |||
| Interior triming | Shaped and soft interior trimming | ||||
| Door & door pump | Aluminum out swing door with remote control lock, domestic door pump | ||||
| Window, windscreen | Sliding side windows; side and rear window toughened safety glass, front rubber-laminated windscreen | ||||
| Rear view mirror | Manual motion review mirror | ||||
| A/C system | 18000Kcal/h | ||||
| Video system | MP5 player with microphone and amplifier, 17' LCD | ||||
| Lamps | New type combination lamp front/rear, high breaking lamp | ||||
| Front window screen wiper | Electric wiper | ||||
| Luggage flaps | Aluminum overturning opened luggage flaps | ||||

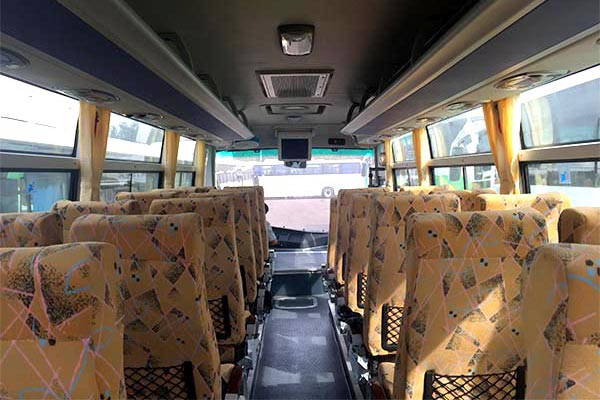

| Seats | 2+2 layout 34 adjustable clothing seats ZTZY3192 with belts, arm rest, driver seat ZTZY1021 | ||||
| Paint | High quality paint | ||||
| Others | Anti-slipping floor leather, side window contain, front sun shade screen, Fire extinguisher, air horn，bull bar | ||||
