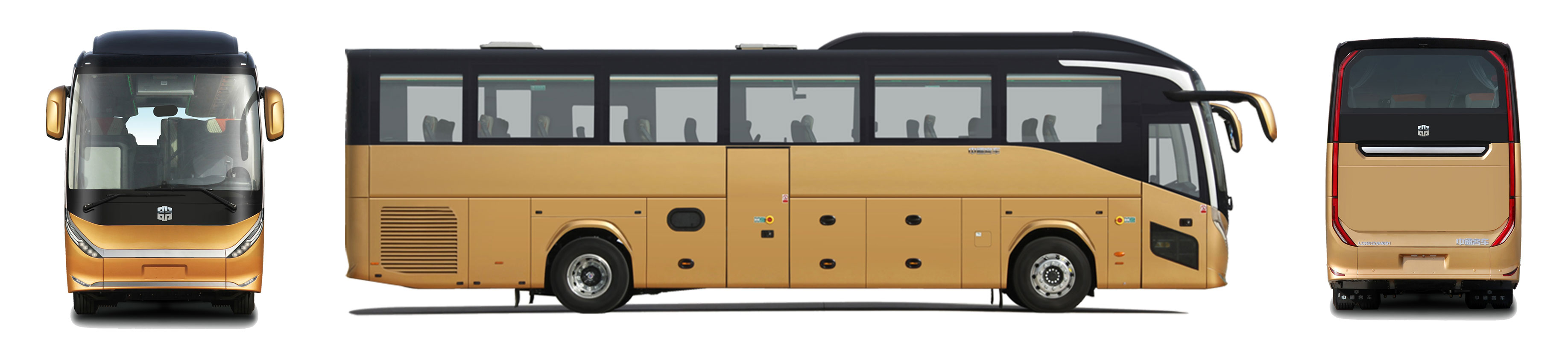

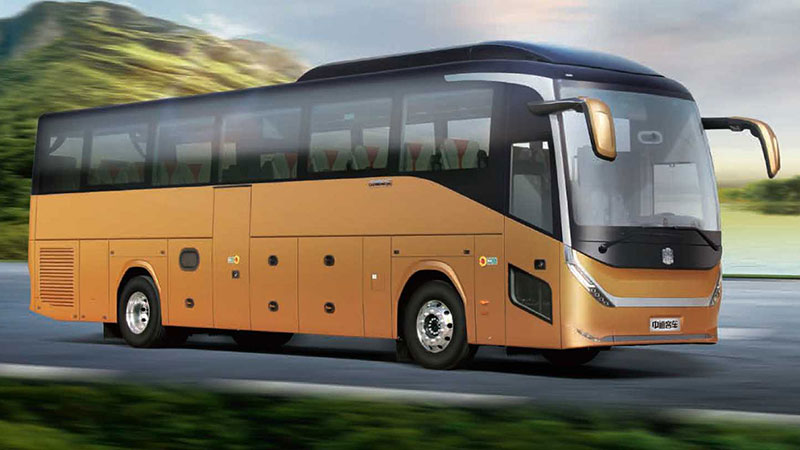

LCK6129H6Q1 Coach (H12)

  • Luxury Bus Interior

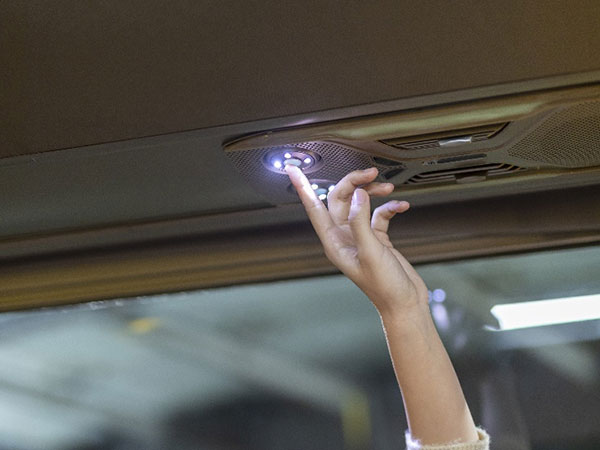

    Interior lighting is dimmable, creating a cosy atmosphere.
  • Intelligent Control for High Driving Safety
    AEB autonomous emergency braking system: The AEB system will activate the brakes of your vehicle when it defects a potential collision. This significantly avoids rear-end collisions.
Technical Specification
Bus parameters
Overall dimensions (LxWxH) (mm) 12000*2550*3830 Wheelbase (mm) 6200
Front/rear overhang (mm) 2450/3350 Approach/departure angle (º) 9/9
Max. speed (km/h) 120(adjustable) Max total mass (GVW) (kg) 18000
Fuel tank capacity (L) 500
Seat layout & capacity 40-51+1+1
Chassis
Engine 375HP
Transmission Manual/ Auto transmission
Steering Integral power steering
Axle Front 6.5T, rear 13T
ABS/EBS ABS
Suspension Air suspension
Tires 295/80R22.5
Specifications & equipment
Exterior Cathode electrophoretic painting for bus body
Interior Super luxury interior, luggage rack on both sides, front sunvisor, curtain, digital clock with temperature display
Safety equipment Automatic fire extinguisher in the engine compartment, and temperature alarm system in the engine compartment
Air conditioning 34000kcal/h
Doors Front and middle door, remote control
Rear-view mirrors Electric rear-view mirror with defroster
Driver seat ZT luxury air suspension driver seat with a 3-point seatbelt
Guide seat ZT guide seat with 3-point seatbelt
Passenger seats ZT luxury passenger seats
Features

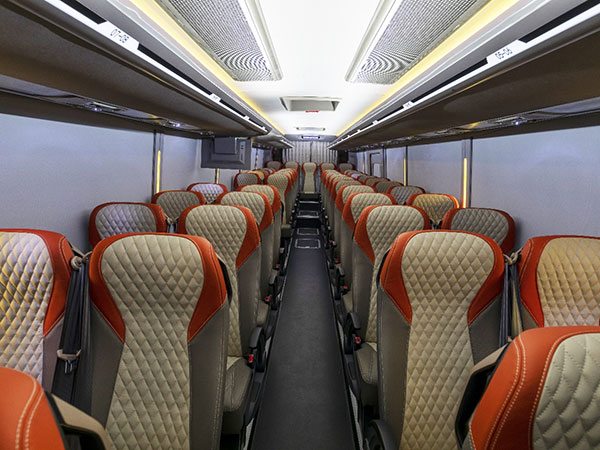

Luxury Bus Interior

    Interior lighting is dimmable, creating a cosy atmosphere.

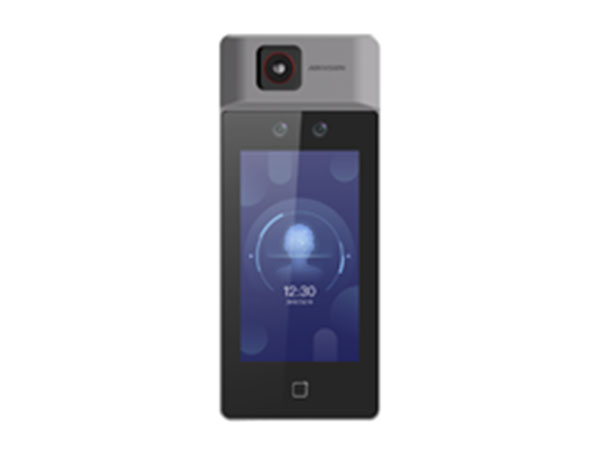

  • Contactless body temperature monitoring:
    Designed in the access control system, the detection device features the temperature range of 30°C-45°C (86°F to 113°F), and the accuracy of ±0.5°C. It supports face recognition and automated body temperature measurement, providing great protection during your travel.

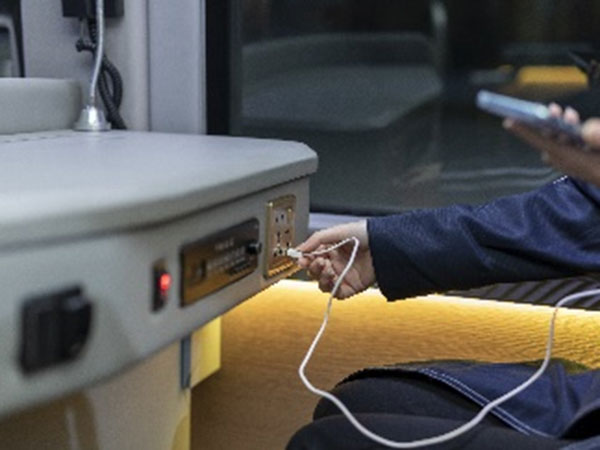

  • Features a tour guide table integrated with an entertainment system, USB charging port, etc.

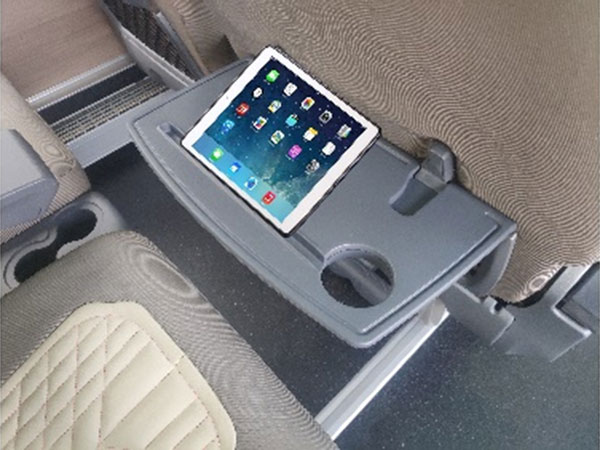

  • Seatback folding table tray can hold drink, snack, book, tablet, etc.

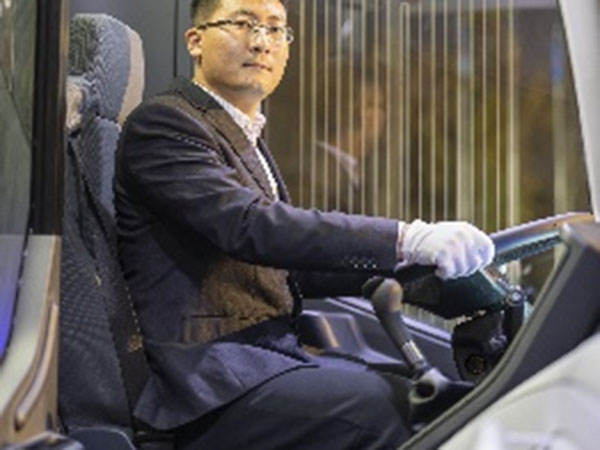

  • Comfortable driver's cabin: Designed with tempered glass protective screen with alarming and high quality driver seat, providing great comfort and high safety during driving.

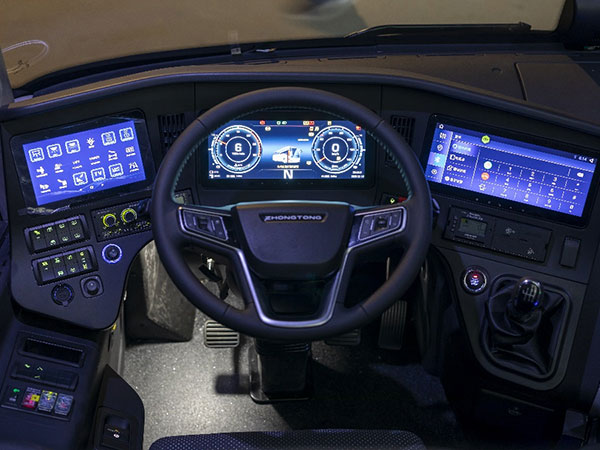

  • On the left, the LCD screen displays various operational functions.
    On the right, the central control screen is integrated with functions including navigation, monitoring, voice control, interconnection of mobile and coach, etc.

Intelligent Control for High Driving Safety

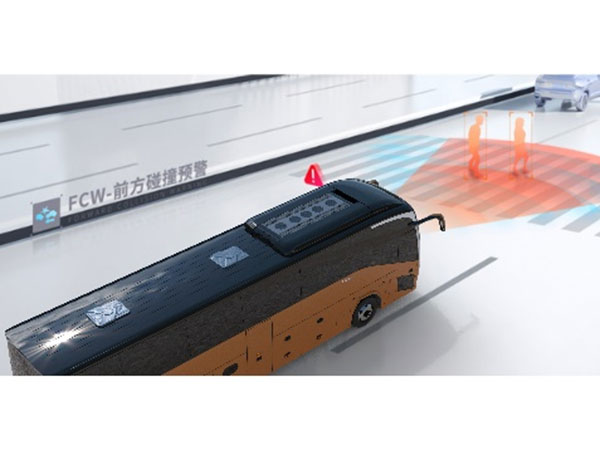

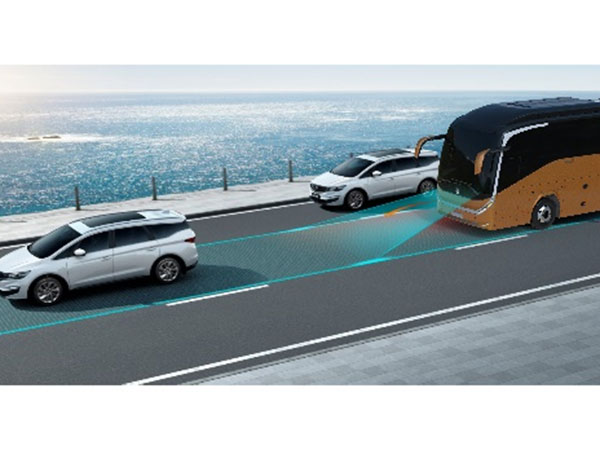

  • AEB autonomous emergency braking system: The AEB system will activate the brakes of your vehicle when it defects a potential collision. This significantly avoids rear-end collisions.

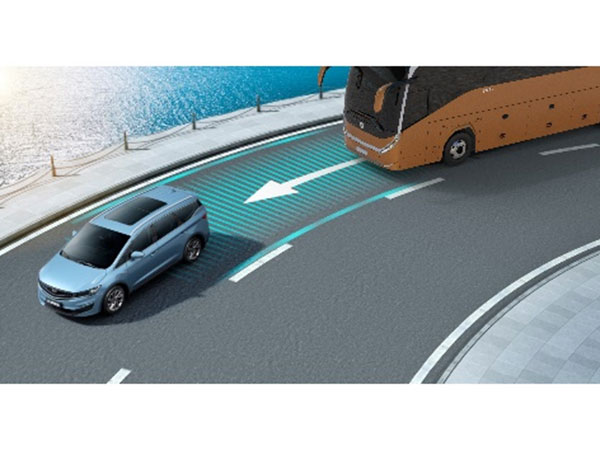

  • Lane departure warning (LDW) system: The tactile warning signals such as seat vibrations will be used to promote driver alertness when they are beginning to leave the traveling lane.

  • Blind spot detection (BSD) system is used to provide alerts to the driver when it detects pedestrians, cyclists, presence of another vehicle, etc., which helps the drivers to make safe decisions in risky situations.

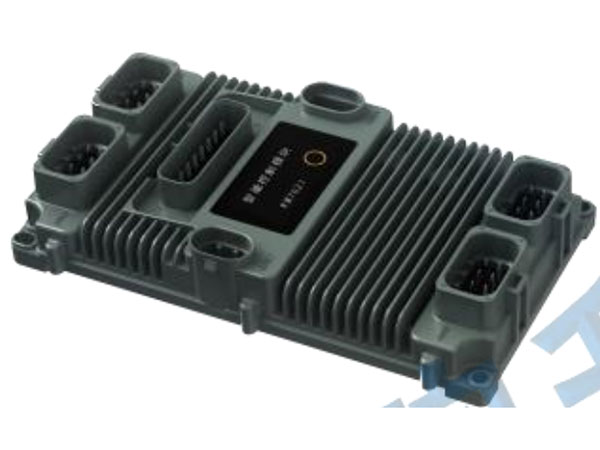

  • Fully intelligent safety assistance system provides predictive protection, lifetime maintenance free, and fault information display.

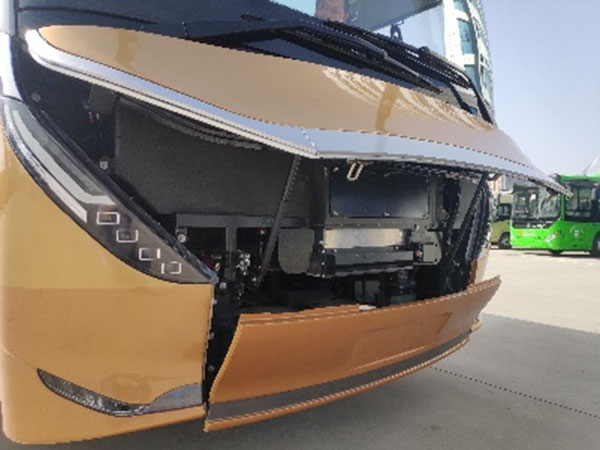

  • The cab front panel can be flipped opened to facilitate inspection and maintenance for the inner parts.
