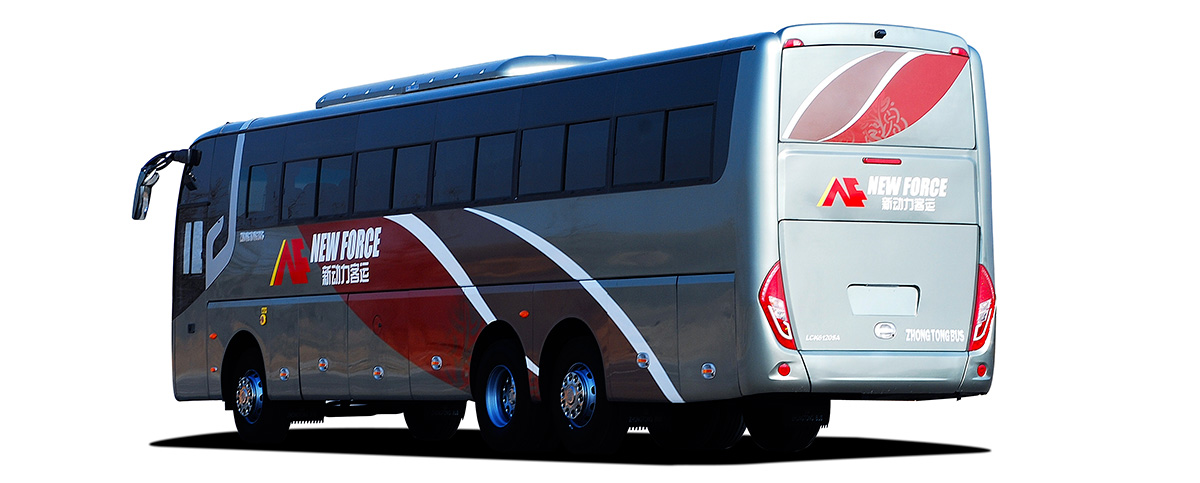

LCK6125A Coach (Compass)
This bus is specially designed for Africa market with Cummins engine in front. It features excellent cooling system, strong power, and low fuel consumption. The electric retarder works to enhance braking capacity, shorten braking distance and make the vehicle much safer. The metal covering in the front wall enhances the coach's safety. The coach possesses a powerful passing ability with the approaching angle reaching 13°.
| Overall specification | overall dimension (mm) | 12500 | Engine | engine model | L360 20 | ||
| overall width (mm) | 2550 | manufacturer | Cummins (China) | ||||
| overall height (mm) | 3850/3710 | engine position | Front | ||||
| body inside height (mm) | 1940 | engine type | 6 cylinders in-line, turbocharged with intercooler | ||||
| wheel base (mm) | 5800+1350 | max power (kw) | 264 | ||||
| front/rear overhang (mm) | 2340/3150 | max torque (N.M) | 1480 | ||||
| approach/departure (º) | 10/13 | displacement (l) | 8.9 | ||||
| first step height (mm) | 400 | bore/stroke mm | 114X144.5 | ||||
| max g.v.w.kg | 21500 | ||||||
| seats capacity (person) | 61+1/ 70+1 | ||||||
| max speed (km/h) | 120 | ||||||
| luggage cabin (m3) | 10.4 | ||||||
| Items | Standard | Optional | |||||
| Chassis specification | manufacturer | made in Zhongtong | |||||
| gear box | S6-160, ZF technology, six gears | ||||||
| clutch | coil spring, Ø430 | ||||||
| front axle | 7.5t front axle | ||||||
| rear axle | 13t rear axle | ||||||
| third axle | 5t third axle | ||||||
| suspension | multi-leaf spring suspension | ||||||
| steering | integral assistant power steering | ||||||
| brake | dual circuit air braking, drum brake | ||||||
| fuel tank | 400L+400L | ||||||
| tyre | 315/80R22.5 | ||||||
| battery /dynamo | 2×12V/195Ah / 28V /150A+140A | ||||||
| others | brake slack auto adjuster, electric retarder, ABS | ||||||
| seat | adjustable seats, ZTZY3210 2+2 layout 61+1; fixed seats, ZTZY3072, 3+2 layout 70+1; driver seat ZTZY1050 | ||||||
