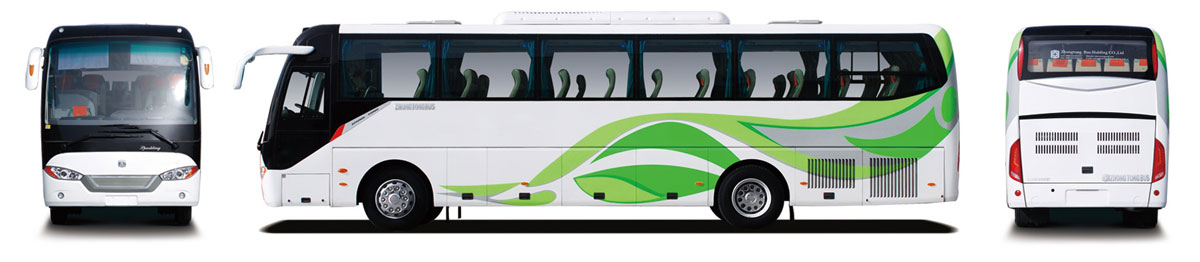

6858H Coach (Sparkling)

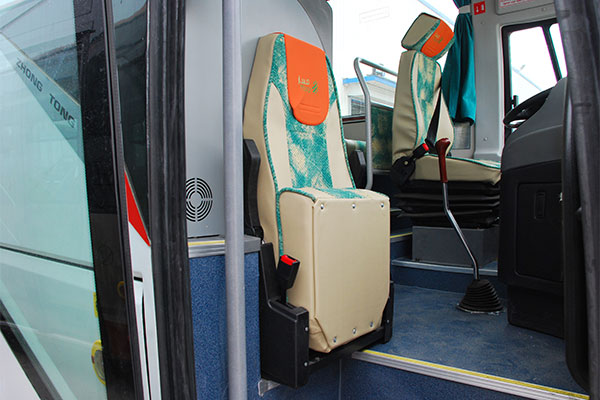

The Sparkling series coach is our new product designed for medium and short distance passenger transport and tourism. Basing on some mature products on the market, it is designed to be more human-friendly. It shows a much better versatility and lower cost. For the bus body, the flat floor makes it easier to cleaned and for passengers to walk on; the overhead air intake system helps to improve the air intake quality of the engine and to make it more economical. For the driver operating part, to add to drivers' comfort and convenience, we have made the shift lever to be separated from the engine cover, and lengthening the lever to increase the arm force. Supported by CATIA, ALIAS and other engineering software, as well as the CAE finite element analysis technique, Sparking coach gains a reliable and reasonable structure, which makes it highly safe. Compared with other similar coaches, its drag coefficient is 5% smaller. The sunken engine is installed under the seats of last several rows to make full use of the interior bus space. The combination of reasonably-arranged chassis, intelligent temperature control system, as well as Zhongtong simulation analysis system, which is competent in simulating the running conditions of vehicles under various typical traffic situations, Sparking series coach can save 5-10% of fuel for users. In addition to the air suspension with six airbags and the bidirectional telescopic shock absorber, there are details of meticulous designs and energy-saving techniques everywhere in the bus, such as the extremely long-life LED lights for all of the bus lights except the high beam. The service life of LED is up to 8 to 10 years, with the energy consumption only 20% of that of ordinary fluorescents.

Bus parameter total length (mm) 8540 Engine model ISDE210 30/EQB210-20/YC6J210-20/OM 906LA
total width (mm) 2480
total height (mm) 33, 503, 250 manufacturer DCEC/DCEC/Yuchai/Benz
inner height (mm) 1940 position/fuel diesel/diesel/diesel/diesel
wheelbase (mm) 4100 type straight cylinder, four-stroke, water-cooling, intercooling
front/rear suspension (mm) 1810/2630 max power (KW) 155/155/155/170
approach angle/ departure angle (º) 12/9 max torque (N.M) 800/700/710/810
height of a single step (mm) 420 displacement (ml) 6700/5883/6500/6750/6370
max total mass set by factory (kg) 11300 cylinder diameter × stroke (mm) 107X124/102X120/105X125/102X130
rated capacity (person) 33+1+1 emission standard
max speed (km/h) 100 certification
luggage compartment volume (m3) 3.3
Item Standard configuration Optional configuration
Chassis parameters chassis Zhongtong Bus Holding Co., Ltd.
gearbox Jijiang S6-80
clutch φ395, single plate, dry clutch, diaphragm spring
front axle 4.2T
rear axle 8T
suspension multiple leaf spring 9/11 air suspension (2/4 airbag)
steering integral power steering
brake double circuit air brake, drum brake KORMEE ABS, automatic gap adjusting arm, front-disc rear-drum brake
fuel tank behind front axle, 200l max volume: 300L
tire 9R22.5
accumulator/alternator 165A.h/150A (10A for ISDE210 30) 150A+120A of alternator when retarder is equipped
others oil-water separator, dryer, clutch booster, air brake retarder, electromagnetic clutch fan, centralized lubrication

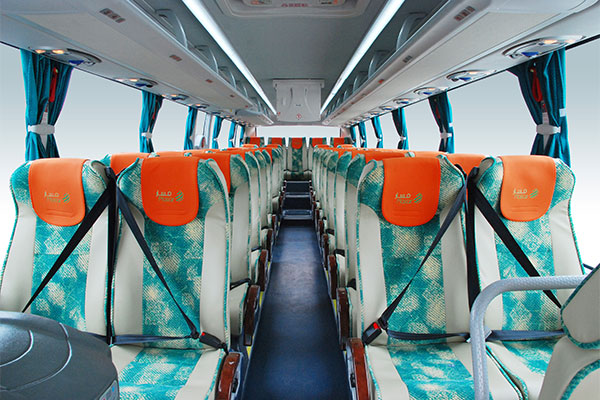

seat 2+2 arrangement, 33+1+1 seats, adjustable seat ZTZY3170, safety belt, driver's seat ZTZY1050, ultra-thin seat for tourist guide lateral movement, pedal
